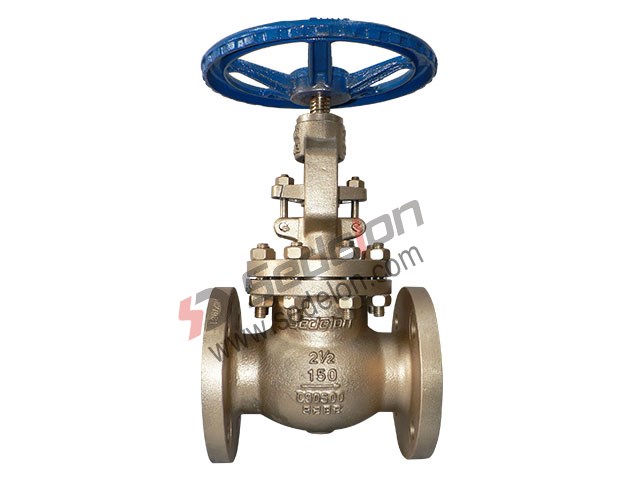

Bronze DIN Globe valve

Bronze DIN Globe valve

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Skype Online	E-mail Us
Bookmark this	PDF Download
【Prev Products】	【Next Products】

Description
Send Inquiry

Sedelon® mainly produces Bronze valves according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, Sedelon® provides you DIN Bronze valves as well， for example, DIN Bronze Globe valves.

The characteristics of the Sedelon Bronze valves are of corrosion resistance , oxidation resistance ， electric resistance and clean sanitation. These features make Bronze valves special and incomparable to other metal material valves.

Application

Face to Face Dimensions: EN558-1/DIN3202 F2

Flange end Dimension : EN1092-1/DIN2545

Design and Manufacture：EN 13709/DIN3356

Pressure Test：EN12266/DIN3230

Materials：C95800、C95500、C95200、C95300、C95600、C61900、C63200,ect.

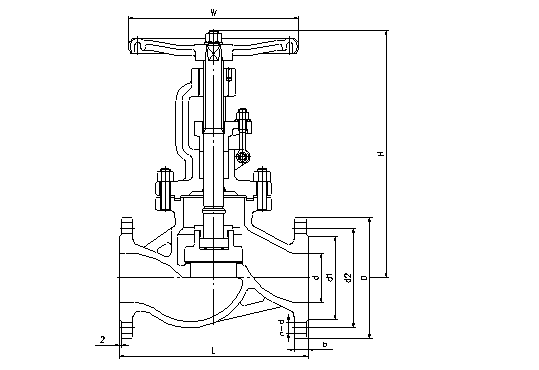

PN16 BronzeDIN GolbeValve

DN		50	65	80	100	125	150	200	250	300	350	400
d	mm	50	63	76	100	125	150	200	250	300	336	387
L(RF)	mm	230	290	310	350	400	480	600	730	850	980	1100
d1	mm	102	122	138	158	188	212	268	320	378	438	490
d2	mm	125	145	160	180	210	240	295	355	410	470	525
D	mm	165	185	200	220	250	285	340	405	460	520	580
b	mm	18	18	20	20	22	22	24	26	28	30	32
n-Фd	mm	4-18	8-18	8-18	8-18	8-18	8-22	12-22	12-26	12-26	16-26	16-30
H	mm	305	354	402	437	496	541	699	815	914	1189	1350
W	mm	200	200	250	250	300	350	400	450	500	550	600

PN25 BronzeDIN Golbe Valve

DN		50	65	80	100	125	150	200	250	300	350	400
d	mm	50	63	76	100	125	150	200	250	300	336	387
L(RF)	mm	230	290	310	350	400	480	600	730	850	980	1100
d1	mm	102	122	138	162	188	218	278	335	395	450	505
d2	mm	125	145	160	190	220	250	310	370	430	490	550
D	mm	165	185	200	235	270	300	360	425	485	555	620
b	mm	20	22	24	24	28	28	30	32	34	38	40
n-Фd	mm	4-18	8-18	8-18	8-22	8-26	8-26	12-26	12-30	16-30	16-33	16-36
H	mm	325	363	415	453	505	556	744	864	948	1269	1450
W	mm	200	200	250	300	350	400	450	500	550	600	600

PN40 BronzeDIN GolbeValve

DN		50	65	80	100	125	150	200	250	300	350	400
d	mm	50	63	76	100	125	150	200	250	300	336	387
L(RF)	mm	230	290	310	350	400	480	600	730	850	980	1100
d1	mm	102	122	138	162	188	218	285	345	410	465	535
d2	mm	125	145	160	190	220	250	320	385	450	510	585
D	mm	165	185	200	235	270	300	375	460	515	580	660
b	mm	20	22	24	24	28	28	34	38	42	46	50
n-Фd	mm	4-18	8-18	8-18	8-22	8-26	8-26	12-30	12-33	16-33	16-36	16-39
H	mm	325	370	430	480	532	589	783	888	965	1285	1512
W	mm	200	200	250	300	350	400	450	500	550	600	600

PN63 BronzeDIN GolbeValve

DN		50	65	80	100	125	150	200	250	300	350	400
d	mm	50	63	76	100	125	150	200	250	300	336	387
L(RF)	mm	300	340	380	430	500	550	650	775	900	1025	1150
d1	mm	102	122	138	162	188	218	285	345	410	465	535
d2	mm	135	160	170	200	240	280	345	400	460	525	585
D	mm	180	205	215	250	295	345	415	470	530	600	670
b	mm	26	26	28	30	34	36	42	48	52	56	60
n-Фd	mm	4-22	8-22	8-22	8-28	8-30	8-33	12-36	12-36	16-36	16-39	16-42
H	mm	305	354	402	437	496	541	699	815	914	1189	1350
W	mm	200	200	250	250	300	350	400	450	500	550	600
