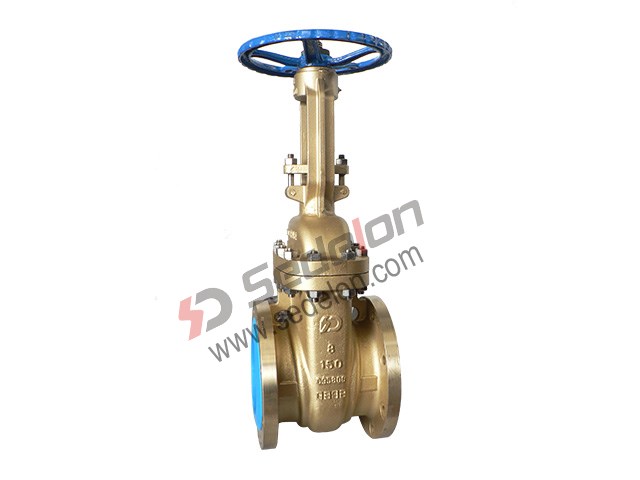

Bronze Gate Valve
{-stralt-}
Bronze Gate Valve

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Skype Online E-mail Us
Bookmark this PDF Download
【Prev Products】 【Next Products】

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Sedelon® mainly produces Bronze valves according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, Sedelon® provides you DIN Bronze valves as well for example, DIN Bronze Gate valves.

The characteristics of the Sedelon Bronze valves are of corrosion resistance , oxidation resistance electric resistance and clean sanitation. These features make Bronze valves special and incomparable to other metal material valves.

Bronze Gate valvesCommonly used Bronze Gate valves which can be fully opened and closed, provide a great on- off service.

Application

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded DimensionsANSI B16.25

Design and ManufactureAPI 600

Pressure TestAPI 598

Main materialC95800C95500C95200C95300C95600C61900C63200,ect.

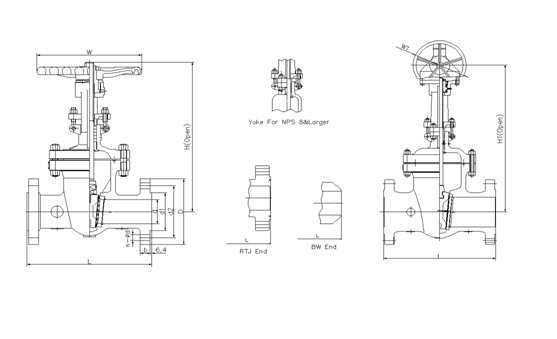

Class150Bronze Gate Valve


NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

127

152

203

254

305

337

387

438

489

591

L(RF)

mm

178

190

203

229

254

267

292

330

356

381

406

432

457

508

L(BW)

mm

216

241

283

305

381

403

419

457

502

572

610

660

711

813

L(RTJ)

mm

191

203

216

241

267

279

305

343

368

394

419

445

470

521

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

120.5

139.5

152.5

190.5

216

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

152

178

190

229

254

279

343

406

483

533

597

635

699

813

b

mm

16

18

19

24

24

26

29

31

32

35

37

40

43

48

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

400

435

515

595

725

780

975

1150

1380

1545

1733

1915

2122

2520

H1

mm

820

1020

1200

1430

1580

1780

1990

2220

2600

W

mm

200

200

250

280

280

300

350

400

450

500

500

500

600

600

W1

mm

310

310

310

310

310

460

460

460

460

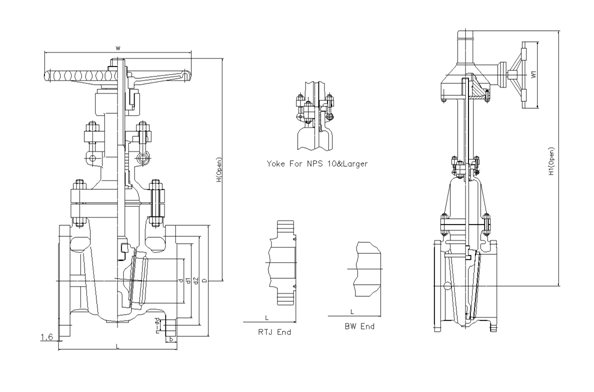

Class300 Bronze Gate Valve

NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

127

152

203

254

305

337

387

432

483

584

L(RF)

mm

216

241

283

305

381

403

419

457

502

762

838

914

991

1143

L(BW)

mm

216

241

283

305

381

403

419

457

502

762

838

914

991

1143

L(RTJ)

mm

232

257

298

321

397

419

435

473

518

778

854

930

1010

1165

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

127

149

168.5

200

235

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

165

190

210

254

279

318

381

445

521

584

648

711

775

914

b

mm

23

26

29

32

35

37

42

48

51

54

58

61

64

70

n-Фd

mm

8-19

8-22

8-22

8-22

8-22

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

420

446

537

619

722

806

1000

1240

1425

1585

1790

1960

2158

2576

H1

mm

650

750

835

1030

1280

1460

1620

1830

2000

2220

2620

W

mm

200

200

250

280

300

350

400

450

500

500

600

650

750

900

W1

mm

310

310

310

310

310

310

460

460

460

460

600

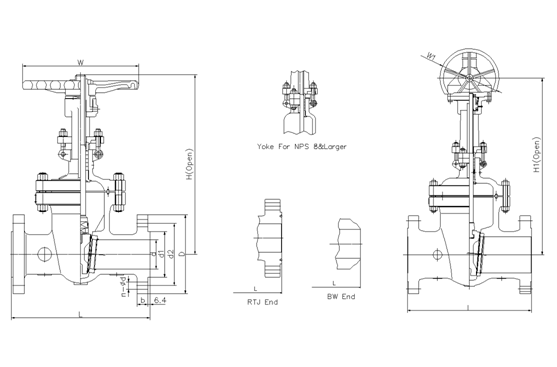

Class600 Bronze Gate Valve

NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

127

152

200

248

298

327

375

419

464

559

L(RF)

mm

292

330

356

432

508

559

660

787

838

889

991

1092

1194

1397

L(BW)

mm

292

330

356

432

508

559

660

787

838

889

991

1092

1194

1397

L(RTJ)

mm

295

333

359

435

511

562

664

791

841

892

994

1095

1200

1407

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

127

149

168.5

216

267

292

349

432

489

527

603

654

724

838

D

mm

165

190

210

273

330

356

419

508

559

603

686

743

813

940

b

mm

26

29

32

38

45

48

56

64

67

70

77

83

89

102

n-Фd

mm

8-19

8-22

8-22

8-25

8-29

12-29

12-32

16-35

20-35

20-38

20-41

20-44

24-44

24-52

H

mm

444

500

558

665

760

868

1073

1263

1600

1705

1835

H1

mm

585

695

790

900

1110

1300

1650

1750

1900

2020

2172

2650

W

mm

200

250

280

300

350

450

500

650

700

900

900

W1

mm

310

310

310

310

310

460

460

460

460

600

600

600

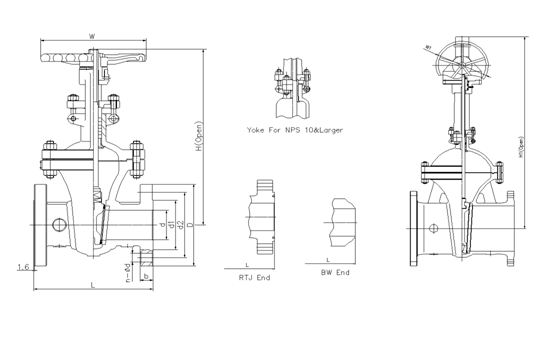

Class900 Bronze Gate Valve

NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

47

57

73

98

121

146

190

234

282

311

354

400

444

533

L(RF)

mm

368

419

381

457

559

610

737

838

965

1029

1130

1219

1321

1549

L(BW)

mm

368

419

381

457

559

610

737

838

965

1029

1130

1219

1321

1549

L(RTJ)

mm

371

422

384

460

562

613

740

841

968

1039

1140

1232

1334

1568

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

165

190.5

190.5

235

279.4

317.5

393.7

469.9

533.4

558.8

615.9

685.8

749.3

901.7

D

mm

216

244

241

292

349

381

470

545

610

640

705

785

855

1040

b

mm

38.5

41.5

38.5

44.5

51

56

64

70

79.5

86

89

102

108

140

n-Фd

mm

8-26

8-29

8-26

8-32

8-35

12-32

12-39

16-39

20-39

20-42

20-45

20-51

20-54

20-67

H

mm

500

550

610

702

850

980

1100

1320

1500

1900

2050

H1

mm

660

750

900

1060

1140

1370

1560

1950

2100

2300

2450

2600

W

mm

280

280

300

350

400

500

650

700

900

900

900

W1

mm

310

310

310

460

460

460

460

600

600

600

600

600
