Sedelon Large size dual plate check valve

Publish Time: 2023-06-20  Visit: 570

A dual plate check valve is a type of check valve that consists of two spring-loaded plates that are hinged together and positioned within the valve body. When the fluid flows in the forward direction, the plates are pushed open, allowing the fluid to pass through. However, when the fluid flows in the reverse direction, the plates are forced shut by the pressure of the fluid, preventing backflow. This type of valve is commonly used in applications where backflow prevention is critical, such as in water treatment plants, oil and gas pipelines, and chemical processing plants.

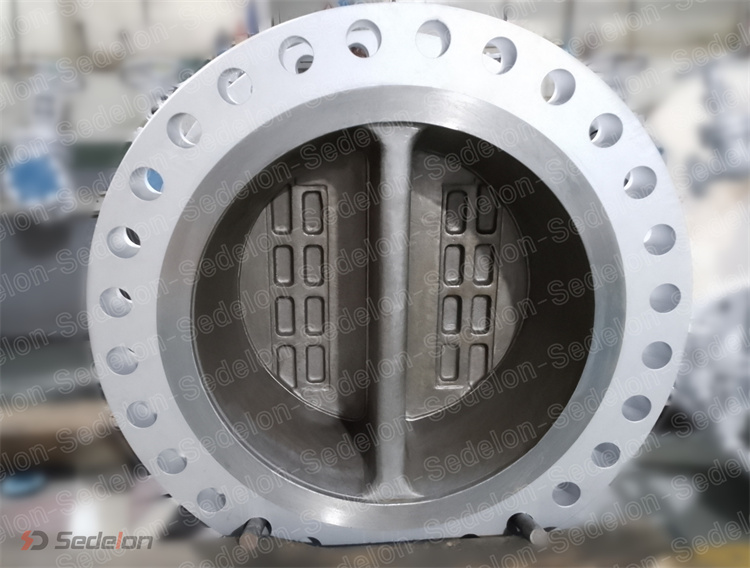

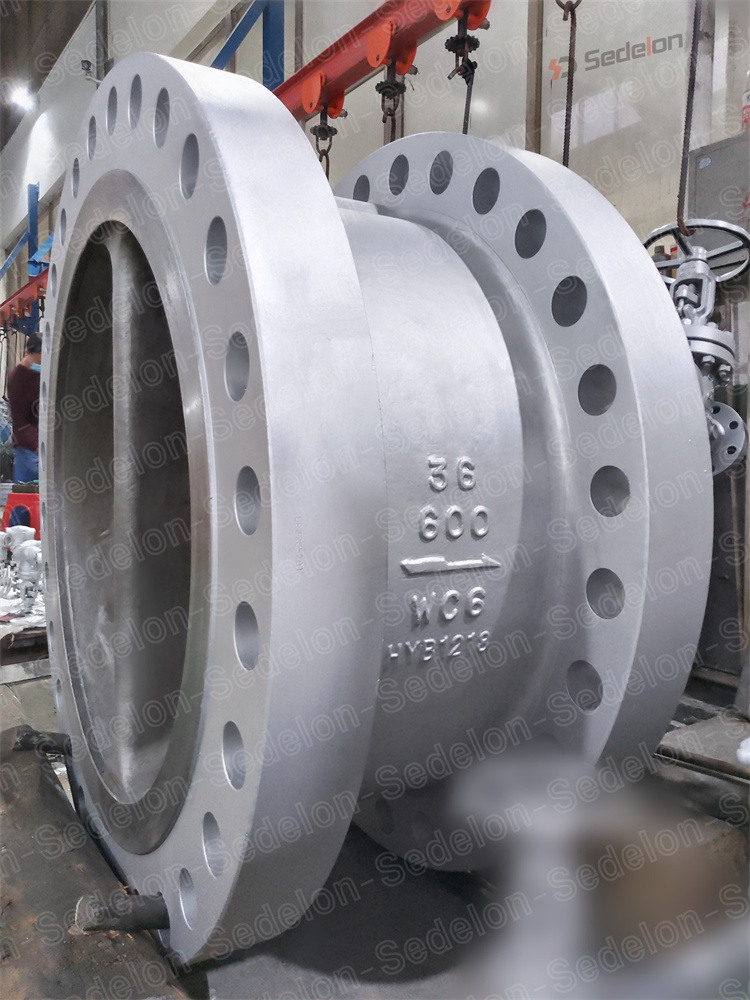

Recently, we sedelon produced a large size dual plate check valve!

Below are specifications of this valves for reference:

Size: 36"

Pressure: 600LB

Body Material: WC6

Type: Retainer type

Ends: Double Flange

Design and Manufacture Standard: API 594

Test Standard: API 598
