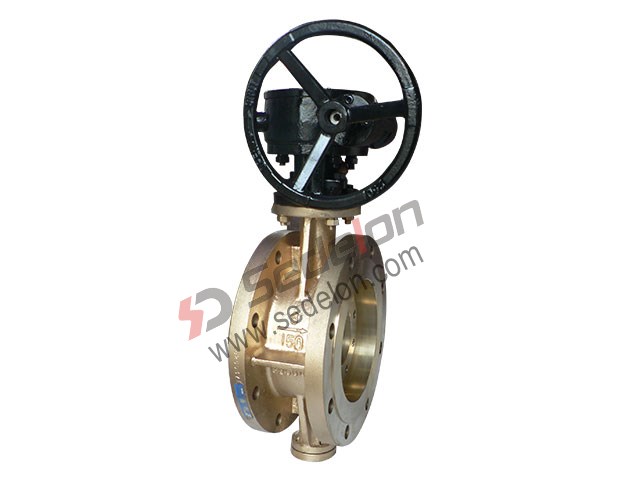

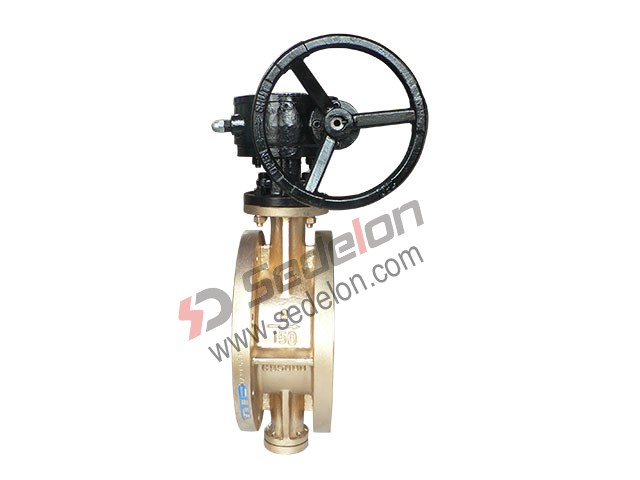

Bronze Butterfly Valve
{-stralt-}
Bronze Butterfly Valve

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Skype Online E-mail Us
Bookmark this PDF Download
【Prev Products】 【Next Products】

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Sedelon® mainly produces Bronze valves according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, Sedelon® provides you DIN Bronze valves as well for example, DIN Bronze Globe valves.

The characteristics of the Sedelon Bronze valves are of corrosion resistance , oxidation resistance electric resistance and clean sanitation. These features make Bronze valves special and incomparable to other metal material valves.

A Bronze Butterfly valve is a valve which can be used for isolating or regulating flow.

Application

Face to Face Dimensions: ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded DimensionsANSI B16.25

Design and ManufactureAPI 609

Pressure TestAPI598

MaterialsC95800C95500C95200C95300C95600C61900C63200,ect.

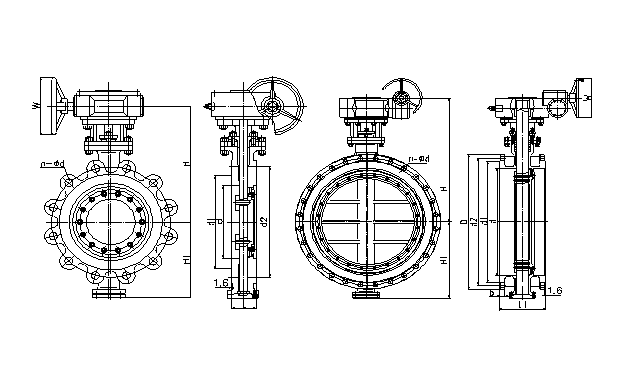

Class150 BronzeButterfly Valve


NPS

in

2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

76

102

152

203

254

305

337

387

438

489

591

L(RF)

mm

43

48

54

57

64

71

81

92

102

114

127

154

\L1(RF)

mm

108

114

127

140

152

165

178

190

216

222

229

267

d1

mm

92

127

157

216

270

324

381

413

470

533

584

692

d2

mm

120.5

152.5

190.5

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

152

190

229

279

343

406

483

533

597

635

699

813

b

mm

16

19

24

26

29

31

32

35

37

40

43

48

n-Фd

mm

4-19

4-19

8-19

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

225

255

285

332

386

427

498

510

540

585

642

693

H1

mm

112

126

146

170

218

245

290

316

352

386

415

482

W

mm

300

300

300

300

300

300

500

500

600

600

600

600

Class300 Bronze Butterfly Valve

NPS

in

3

4

6

8

10

12

14

16

18

20

24

d

mm

76

102

152

203

254

305

337

387

432

483

584

L(RF)

mm

48

54

59

73

83

92

117

133

149

159

181

\L1(RF)

mm

114

127

140

152

165

178

190

216

222

229

267

d1

mm

127

157

216

270

324

381

413

470

533

584

692

d2

mm

168.5

200

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

210

254

318

381

445

521

584

648

711

775

914

b

mm

29

32

37

42

48

51

54

58

61

64

70

n-Фd

mm

8-22

8-22

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

265

290

355

418

456

498

547

582

651

704

780

H1

mm

130

150

185

236

273

313

338

392

420

465

532

W

mm

300

300

300

500

500

600

600

600

600

600

600
