Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.
 Skype Online
|
E-mail Us
|
Bookmark this
|
 PDF Download
|
| 【Prev Products】 | 【Next Products】 |

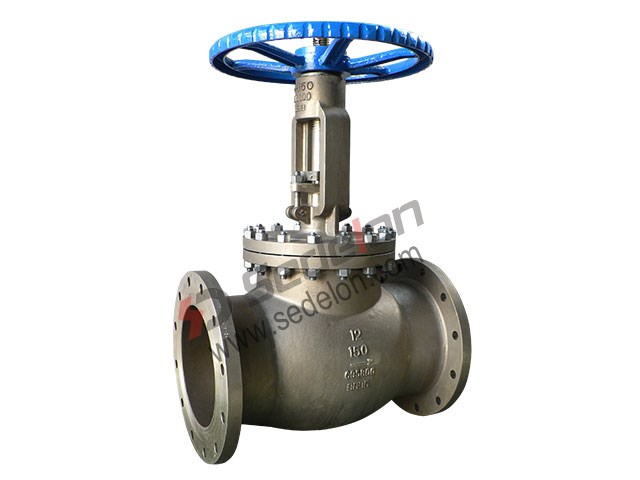

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.
Sedelon® mainly produces Bronze valves according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, Sedelon® provides you DIN Bronze valves as well， for example, DIN Bronze Globe valves.
The characteristics of the Sedelon Bronze valves are of corrosion resistance , oxidation resistance ， electric resistance and clean sanitation. These features make Bronze valves special and incomparable to other metal material valves.
Application
Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions：ANSI B16.25
Design and Manufacture：BS1873
Pressure Test：API598
Materials：C95800、C95500、C95200、C95300、C95600、C61900、C63200,ect.

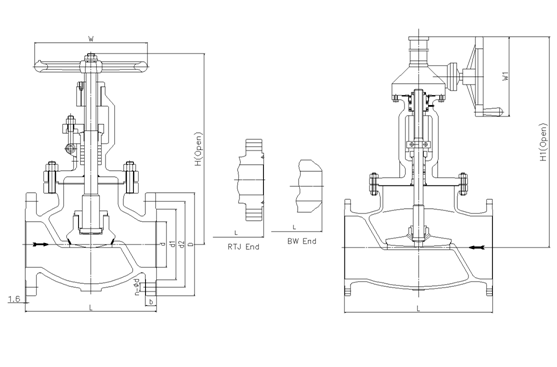

Class150 BronzeGLOBE Valve
|
NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
d |
mm |
51 |
64 |
76 |
102 |
127 |
152 |
203 |
254 |
305 |
|
L(RF) |
mm |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
|
L(BW) |
mm |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
|
L(RTJ) |
mm |
216 |
229 |
254 |
305 |
369 |
419 |
508 |
635 |
711 |
|
d1 |
mm |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
381 |
|
d2 |
mm |
120.5 |
139.5 |
152.5 |
190.5 |
216 |
241.5 |
298.5 |
362 |
432 |
|
D |
mm |
152 |
178 |
190 |
229 |
254 |
279 |
343 |
406 |
483 |
|
b |
mm |
16 |
18 |
19 |
24 |
24 |
26 |
29 |
31 |
32 |
|
n-Фd |
mm |
4-19 |
4-19 |
4-19 |
8-19 |
8-22 |
8-22 |
8-22 |
12-25 |
12-25 |
|
H |
mm |
330 |
360 |
390 |
445 |
480 |
520 |
600 |
773 |
880 |
|
H1 |
mm |
|
|
|
|
|
556 |
658 |
805 |
955 |
|
W |
mm |
200 |
200 |
250 |
300 |
350 |
350 |
500 |
500 |
550 |
|
W1 |
mm |
|
|
|
|
|
310 |
310 |
460 |
460 |

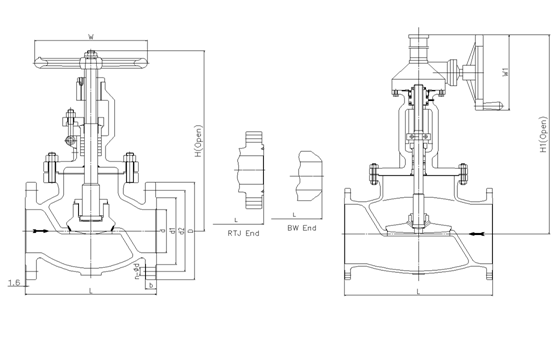

Class300 BronzeGLOBE Valve
|
NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
d |
mm |
51 |
64 |
76 |
102 |
127 |
152 |
203 |
254 |
305 |
|
L(RF) |
mm |
267 |
292 |
318 |
356 |
400 |
444 |
559 |
622 |
711 |
|
L(BW) |
mm |
267 |
292 |
318 |
356 |
400 |
444 |
559 |
622 |
711 |
|
L(RTJ) |
mm |
283 |
308 |
333 |
371 |
416 |
460 |
575 |
638 |
727 |
|
d1 |
mm |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
381 |
|
d2 |
mm |
127 |
149 |
168.5 |
200 |
235 |
270 |
330 |
387.5 |
451 |
|
D |
mm |
165 |
190 |
210 |
254 |
279 |
318 |
381 |
445 |
521 |
|
b |
mm |
23 |
26 |
29 |
32 |
35 |
37 |
42 |
48 |
51 |
|
n-Фd |
mm |
8-19 |
8-22 |
8-22 |
8-22 |
8-22 |
12-22 |
12-25 |
16-29 |
16-32 |
|
H |
mm |
385 |
420 |
440 |
515 |
580 |
660 |
900 |
950 |
1030 |
|
H1 |
mm |
|
|
|
|
|
690 |
950 |
990 |
1080 |
|
W |
mm |
250 |
250 |
300 |
350 |
450 |
500 |
500 |
550 |
550 |
|
W1 |
mm |
|
|
|
|
|
310 |
460 |
460 |
460 |

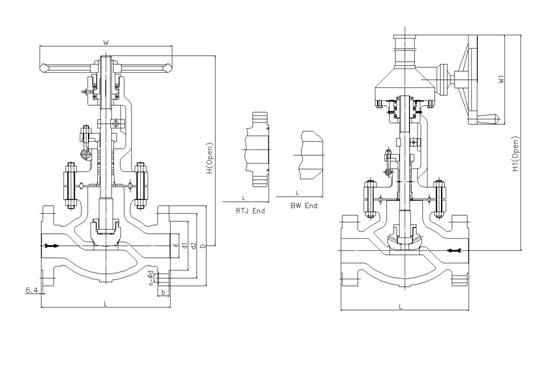

Class600 BronzeGLOBE Valve
|
NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
d |
mm |
51 |
64 |
76 |
102 |
127 |
152 |
200 |
248 |
298 |
|
L(RF) |
mm |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
|
L(BW) |
mm |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
|
L(RTJ) |
mm |
295 |
333 |
359 |
435 |
511 |
562 |
664 |
791 |
841 |
|
d1 |
mm |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
381 |
|
d2 |
mm |
127 |
149 |
168.5 |
216 |
267 |
292 |
349 |
432 |
489 |
|
D |
mm |
165 |
190 |
210 |
273 |
330 |
356 |
419 |
508 |
559 |
|
b |
mm |
26 |
29 |
32 |
38 |
45 |
48 |
56 |
64 |
67 |
|
n-Фd |
mm |
8-19 |
8-22 |
8-22 |
8-25 |
8-29 |
12-29 |
12-32 |
16-35 |
20-35 |
|
H |
mm |
360 |
410 |
465 |
545 |
625 |
785 |
930 |
|
|
|
H1 |
mm |
|
|
|
575 |
660 |
820 |
960 |
1040 |
1280 |
|
W |
mm |
250 |
300 |
350 |
400 |
500 |
550 |
650 |
|
|
|
W1 |
mm |
|
|
|
310 |
310 |
460 |
460 |
610 |
610 |

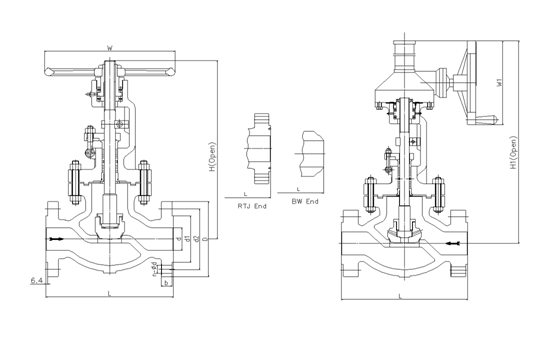

Class900 BronzeGLOBE Valve
|
NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
|
d |
mm |
47 |
57 |
73 |
98 |
121 |
146 |
190 |
234 |
|
L(RF) |
mm |
368 |
419 |
381 |
457 |
559 |
610 |
737 |
838 |
|
L(BW) |
mm |
368 |
419 |
381 |
457 |
559 |
610 |
737 |
838 |
|
L(RTJ) |
mm |
371 |
422 |
384 |
460 |
562 |
613 |
740 |
841 |
|
d1 |
mm |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
|
d2 |
mm |
165 |
190.5 |
190.5 |
235 |
279.4 |
317.5 |
393.7 |
469.9 |
|
D |
mm |
216 |
244 |
241 |
292 |
349 |
381 |
470 |
545 |
|
b |
mm |
38.5 |
41.5 |
38.5 |
44.5 |
51 |
56 |
64 |
70 |
|
n-Фd |
mm |
8-26 |
8-29 |
8-26 |
8-32 |
8-35 |
12-32 |
12-39 |
16-39 |
|
H |
mm |
480 |
520 |
564 |
685 |
780 |
950 |
|
|
|
H1 |
mm |
|
|
630 |
720 |
840 |
1015 |
1100 |
1185 |
|
W |
mm |
350 |
350 |
400 |
450 |
550 |
650 |
|
|
|
W1 |
mm |
|
|
310 |
310 |
460 |
460 |
610 |
610 |
