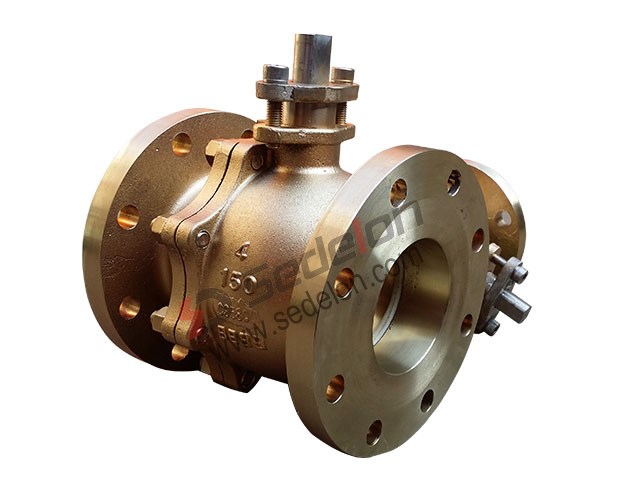

Bronze API Ball Valve
{-stralt-}
Bronze API Ball Valve

Compared with other material,Bronze API Ball Valve are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types ofBronze API Ball Valve which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Skype Online E-mail Us
Bookmark this PDF Download
【Prev Products】 【Next Products】

Compared with other material,Bronze API Ball Valve are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types ofBronze API Ball Valve which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Sedelon® mainly producesBronze API Ball Valve according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, Sedelon® provides you DIN Bronze valves as well,for example, Bronze API Ball Valve.

The characteristics of the SedelonBronze API Ball Valveare of corrosion resistance , oxidation resistance,electric resistance and clean sanitation. These features makeBronze API Ball Valve special and incomparable to other metal material valves.

ABronze API Ball Valveis a valve which can be used for isolating or regulating flow.

Application

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions:ANSI B16.25

Design and Manufacture:API 6D

Pressure Test:API598

Materials:WCB、WC6、WC9、CF8、CF8M、CF3、CF3M、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500、A105、F304、F304L、F316、F316L、LF1、LF2、LF3、LF9、F51、F53、F11、F22, ect.

Class150 Bronze API Ball Valve


NPS

in

2

2 1/2

3

4

5

6

8

10

d

mm

51

64

76

102

127

152

203

254

L(RF)

mm

178

190

203

229

356

394

457

533

d1

mm

92

105

127

157

186

216

270

324

d2

mm

120.5

139.5

152.5

190.5

216

241.5

298.5

362

D

mm

152

178

190

229

254

279

343

406

b

mm

16

18

19

24

24

26

29

31

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

8-22

12-25

H

mm

110

130

150

180

220

270

340

350

W

mm

200

290

290

360

600

800

1000

1200

Class300 Bronze API Ball Valve

NPS

in

2

2 1/2

3

4

5

6

8

d

mm

51

64

76

102

127

152

203

L(RF)

mm

216

241

283

305

381

403

502

d1

mm

92

105

127

157

186

216

270

d2

mm

127

149

168.5

200

235

270

330

D

mm

165

190

210

254

279

318

381

b

mm

23

26

29

32

35

37

42

n-Фd

mm

8-19

8-22

8-22

8-22

8-22

12-22

12-25

H

mm

140

160

180

208

220

290

300

W

mm

200

290

290

360

600

800

1000
