Compared with other material, Bronze Floating Ball Valve are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze Floating Ball Valve which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.
 Skype Online
|
E-mail Us
|
Bookmark this
|
 PDF Download
|
| 【Prev Products】 | 【Next Products】 |

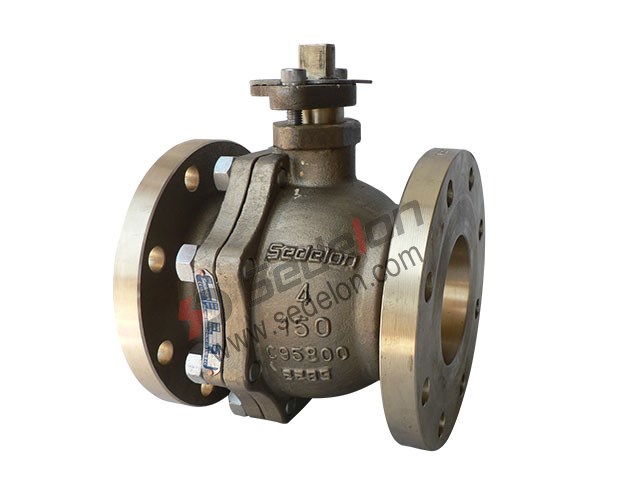

Compared with other material, Bronze Floating Ball Valve are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze Floating Ball Valve which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.
Sedelon® mainly produces Bronze Floating Ball Valve according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, Sedelon® provides you DIN Bronze valves as well， for example, Bronze Floating Ball Valve.
The characteristics of the SedelonBronze Floating Ball Valve are of corrosion resistance , oxidation resistance ， electric resistance and clean sanitation. These features makeBronze Floating Ball Valve special and incomparable to other metal material valves.
A Bronze Floating Ball Valve is a valve which can be used for isolating or regulating flow.
Application
Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions：ANSI B16.25
Design and Manufacture：API 6D
Pressure Test：API598
Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1
LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800、C95500、A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22, ect.

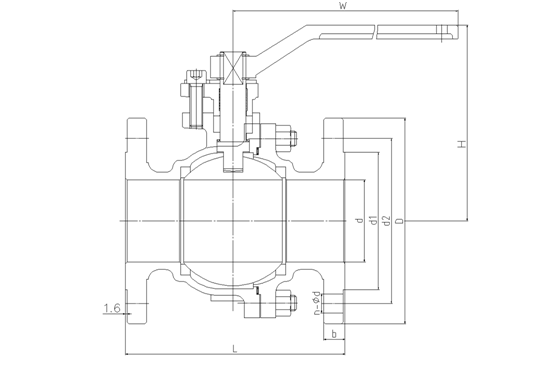

Class150 Bronze Floating Ball Valve
NPS
in
2
2 1/2
3
4
5
6
8
10
d
mm
51
64
76
102
127
152
203
254
L(RF)
mm
178
190
203
229
356
394
457
533
d1
mm
92
105
127
157
186
216
270
324
d2
mm
120.5
139.5
152.5
190.5
216
241.5
298.5
362
D
mm
152
178
190
229
254
279
343
406
b
mm
16
18
19
24
24
26
29
31
n-Фd
mm
4-19
4-19
4-19
8-19
8-22
8-22
8-22
12-25
H
mm
110
130
150
180
220
270
340
350
W
mm
200
290
290
360
600
800
1000
1200
Class300 Bronze Floating Ball Valve
|
NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
|
d |
mm |
51 |
64 |
76 |
102 |
127 |
152 |
203 |
|
L(RF) |
mm |
216 |
241 |
283 |
305 |
381 |
403 |
502 |
|
d1 |
mm |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
|
d2 |
mm |
127 |
149 |
168.5 |
200 |
235 |
270 |
330 |
|
D |
mm |
165 |
190 |
210 |
254 |
279 |
318 |
381 |
|
b |
mm |
23 |
26 |
29 |
32 |
35 |
37 |
42 |
|
n-Фd |
mm |
8-19 |
8-22 |
8-22 |
8-22 |
8-22 |
12-22 |
12-25 |
|
H |
mm |
140 |
160 |
180 |
208 |
220 |
290 |
300 |
|
W |
mm |
200 |
290 |
290 |
360 |
600 |
800 |
1000 |
