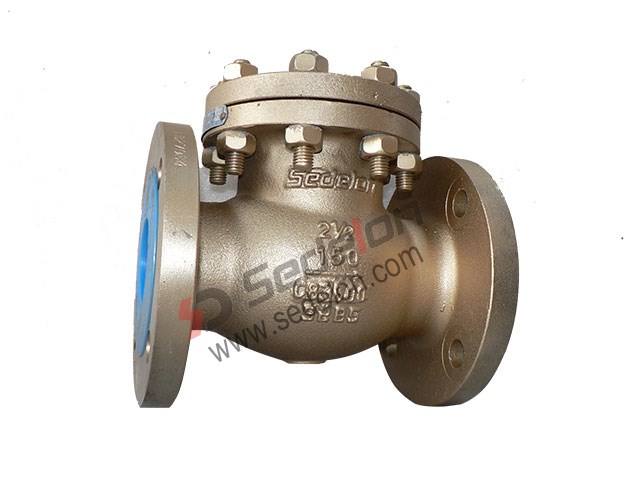

Bronze check valve
{-stralt-}
Bronze check valve

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Skype Online E-mail Us
Bookmark this PDF Download
【Prev Products】 【Next Products】

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Sedelon® mainly produces Bronze valves according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, Sedelon® provides you DIN Bronze valves as well for example, DIN Bronze Globe valves.

The characteristics of the Sedelon Bronze valves are of corrosion resistance , oxidation resistance electric resistance and clean sanitation. These features make Bronze valves special and incomparable to other metal material valves.

Bronze Check valves also referred to as Bronze non return valves.

The disc will be opened and closed by the flow automatically, which prevents the fluid of flowing back, for example, Bronze Wafer Check valves. Sedelon provides API 6D Bronze Wafer check valves which have a short pattern wafer body according to the API 6D and ANSI B16.10 face to face dimensions..


Application

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded DimensionsANSI B16.25

Design and ManufactureBS1868

Pressure TestAPI598

MaterialsC95800C95500C95200C95300C95600C61900C63200,ect.

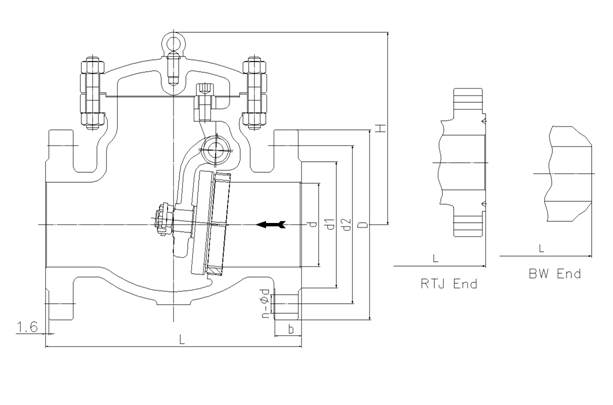

Class150 Bronze Check Valve


NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

127

152

203

254

305

337

387

438

489

591

L(RF)

mm

203

216

241

292

330

356

495

622

699

787

864

978

978

1295

L(BW)

mm

203

216

241

292

330

356

495

622

699

787

864

978

978

1295

L(RTJ)

mm

216

229

254

305

343

368

508

635

711

800

876

991

991

1308

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

120.5

139.5

152.5

190.5

216

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

152

178

190

229

254

279

343

406

483

533

597

635

699

813

b

mm

16

18

19

24

24

26

29

31

32

35

37

40

43

48

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

132

147

176

198

255

320

380

440

480

530

580

618

657

760

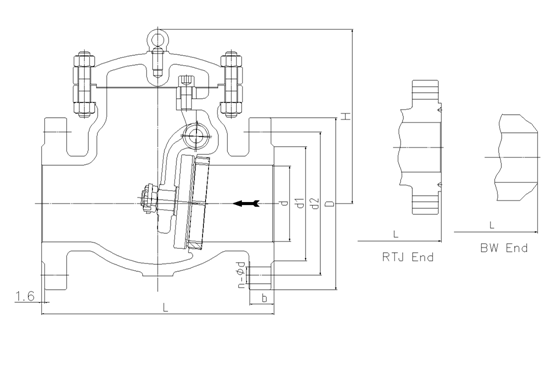

Class300 Bronze Check Valve


NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

127

152

203

254

305

337

387

432

483

584

L(RF)

mm

267

292

318

356

400

445

533

622

711

838

864

978

1016

1346

L(BW)

mm

267

292

318

356

400

445

533

622

711

838

864

978

1016

1346

L(RTJ)

mm

283

308

333

371

416

460

549

638

727

854

879

994

1035

1368

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

127

149

168.5

200

235

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

165

190

210

254

279

318

381

445

521

584

648

711

775

914

b

mm

23

26

29

32

35

37

42

48

51

54

58

61

64

70

n-Фd

mm

8-19

8-22

8-22

8-22

8-22

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

144

149

210

260

295

326

380

440

520

540

588

670

720

850

Class600 Bronze Check Valve

NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

127

152

200

248

298

327

375

419

464

559

L(RF)

mm

292

330

356

432

508

559

660

787

838

889

991

1092

1194

1397

L(BW)

mm

292

330

356

432

508

559

660

787

838

889

991

1092

1194

1397

L(RTJ)

mm

295

333

359

435

511

562

664

791

841

892

994

1095

1200

1407

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

127

149

168.5

216

267

292

349

432

489

527

603

654

724

838

D

mm

165

190

210

273

330

356

419

508

559

603

686

743

813

940

b

mm

26

29

32

38

45

48

56

64

67

70

77

83

89

102

n-Фd

mm

8-19

8-22

8-22

8-25

8-29

12-29

12-32

16-35

20-35

20-38

20-41

20-44

24-44

24-52

H

mm

170

178

246

290

320

360

430

502

554

595

680

778

970

1100

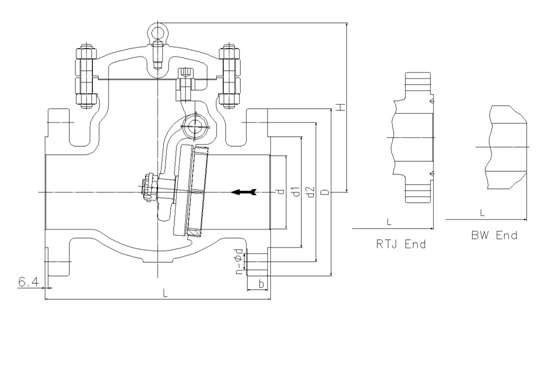

Class900 BronzeCheck Valve

NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

47

57

73

98

121

146

190

234

282

311

354

400

444

533

L(RF)

mm

368

419

381

457

559

610

737

838

965

1029

1130

1219

1321

1549

L(BW)

mm

368

419

381

457

559

610

737

838

965

1029

1130

1219

1321

1549

L(RTJ)

mm

371

422

384

460

562

613

740

841

968

1038

1140

1232

1334

1568

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

165

190.5

190.5

235

279.4

317.5

393.7

469.9

533.4

558.8

615.9

685.8

749.3

901.7

D

mm

216

244

241

292

349

381

470

545

610

640

705

785

855

1040

b

mm

38.5

41.5

38.5

44.5

51

56

64

70

79.5

86

89

102

108

140

n-Фd

mm

8-26

8-29

8-26

8-32

8-35

12-32

12-39

16-39

20-39

20-42

20-45

20-51

20-54

20-67

H

mm

200

220

280

320

360

400

480

560

630

680

780

880

1050

1200
