Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.
 Skype Online
|
E-mail Us
|
Bookmark this
|
 PDF Download
|
| 【Prev Products】 | 【Next Products】 |

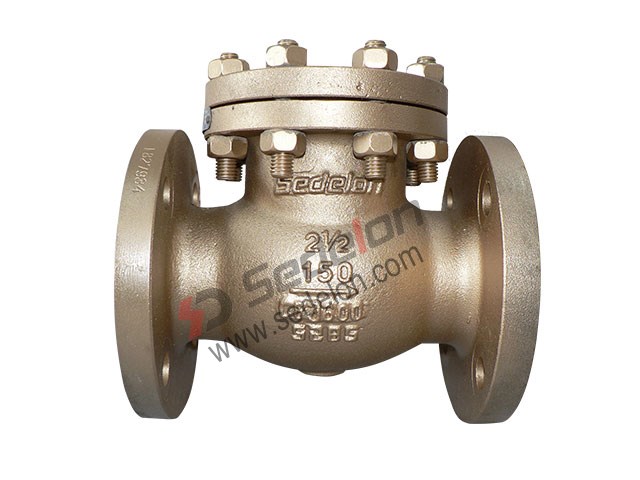

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.
Sedelon® mainly produces Bronze valves according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, Sedelon® provides you DIN Bronze valves as well， for example, DIN Bronze Check valves.
The characteristics of the Sedelon Bronze valves are of corrosion resistance , oxidation resistance ， electric resistance and clean sanitation. These features make Bronze valves special and incomparable to other metal material valves.
Application
Face to Face Dimensions: EN558-1/DIN3202 F1
Flange end Dimension : EN1092-1/DIN2545
Design and Manufacture：EN 13709/DIN3356
Pressure Test：EN14341/DIN3840
Materials：C95800、C95500、C95200、C95300、C95600、C61900、C63200,ect.

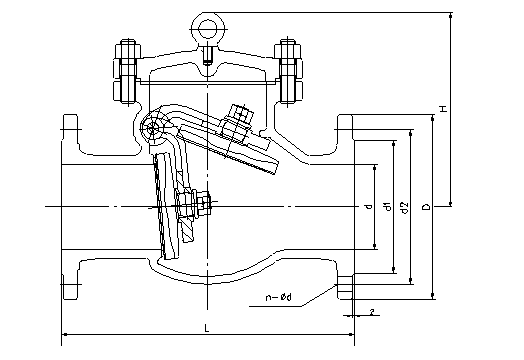

PN16 BronzeDIN Check Valve
|
DN |
|
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
d |
mm |
50 |
63 |
76 |
100 |
125 |
150 |
200 |
250 |
300 |
336 |
387 |
|
L(RF) |
mm |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
1100 |
|
d1 |
mm |
102 |
122 |
138 |
158 |
188 |
212 |
268 |
320 |
378 |
438 |
490 |
|
d2 |
mm |
125 |
145 |
160 |
180 |
210 |
240 |
295 |
355 |
410 |
470 |
525 |
|
D |
mm |
165 |
185 |
200 |
220 |
250 |
285 |
340 |
405 |
460 |
520 |
580 |
|
b |
mm |
18 |
18 |
20 |
20 |
22 |
22 |
24 |
26 |
28 |
30 |
32 |
|
n-Фd |
mm |
4-18 |
8-18 |
8-18 |
8-18 |
8-18 |
8-22 |
12-22 |
12-26 |
12-26 |
16-26 |
16-30 |
|
H |
mm |
135 |
140 |
145 |
165 |
250 |
285 |
315 |
390 |
420 |
450 |
520 |
PN25 BronzeDIN Check Valve
|
DN |
|
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
d |
mm |
50 |
63 |
76 |
100 |
125 |
150 |
200 |
250 |
300 |
336 |
387 |
|
L(RF) |
mm |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
1100 |
|
d1 |
mm |
102 |
122 |
138 |
162 |
188 |
218 |
278 |
335 |
395 |
450 |
505 |
|
d2 |
mm |
125 |
145 |
160 |
190 |
220 |
250 |
310 |
370 |
430 |
490 |
550 |
|
D |
mm |
165 |
185 |
200 |
235 |
270 |
300 |
360 |
425 |
485 |
555 |
620 |
|
b |
mm |
20 |
22 |
24 |
24 |
28 |
28 |
30 |
32 |
34 |
38 |
40 |
|
n-Фd |
mm |
4-18 |
8-18 |
8-18 |
8-22 |
8-26 |
8-26 |
12-26 |
12-30 |
16-30 |
16-33 |
16-36 |
|
H |
mm |
135 |
140 |
150 |
170 |
265 |
295 |
345 |
400 |
435 |
460 |
530 |
PN40 BronzeDIN Check Valve
|
DN |
|
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
d |
mm |
50 |
63 |
76 |
100 |
125 |
150 |
200 |
250 |
300 |
336 |
387 |
|
L(RF) |
mm |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
1100 |
|
d1 |
mm |
102 |
122 |
138 |
162 |
188 |
218 |
285 |
345 |
410 |
465 |
535 |
|
d2 |
mm |
125 |
145 |
160 |
190 |
220 |
250 |
320 |
385 |
450 |
510 |
585 |
|
D |
mm |
165 |
185 |
200 |
235 |
270 |
300 |
375 |
460 |
515 |
580 |
660 |
|
b |
mm |
20 |
22 |
24 |
24 |
28 |
28 |
34 |
38 |
42 |
46 |
50 |
|
n-Фd |
mm |
4-18 |
8-18 |
8-18 |
8-22 |
8-26 |
8-26 |
12-30 |
12-33 |
16-33 |
16-36 |
16-39 |
|
H |
mm |
145 |
160 |
180 |
190 |
280 |
310 |
350 |
430 |
450 |
480 |
550 |
